Accessories

INSTALLATION KITs

INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA
Art. No.: 101476
More info

Direct Mounting

Content:

  • 1 x Reducer G1/8 male x G1/4 female (brass)
  • 1 x Reducer M6 male x G1/4 female (brass)
  • 1 x Reducer M8x1 male x G1/ 4 female (brass)
  • 1 x Reducer M10x1 male x G1/4 female (brass)
  • 1 x Angle 45° G1/4 male x G1/4 female (brass)
  • 1 x Extension 45 mm R1/4 male x G1/4 female (brass)
INSTALLATION KIT STAR
Art. No.: 101477
More info

Direct Mounting

Content:

  • 1 x Reducer G1/8 male x G1/4 female (brass)
  • 1 x Reducer M6 male x G1/4 female (brass)
  • 1 x Reducer M8x1 male x G1/4 female (brass)
  • 1 x Reducer M10x1 male x G1/4 female (brass)
  • 1 x Support flange STAR G1/4 male x G1/4 female (brass /plastic)
  • 1 x Angle 45° G1/4 male x G1/4 female (brass)
  • 1 x Extension 45 mm G1/4 male x G1/4 female (brass)
INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA incl. 1,5 m hose
Art. No.: 101481
More info

Content:

  • 1 x Reducer G1/8 male x G1/4 female (brass)
  • 1 x Reducer M6 male x G1/4 female (brass)
  • 1 x Reducer M8x1 male x G1/4 female (brass)
  • 1 x Reducer M10x1 male x G1/4 female (brass)
  • 1.5 m Heavy Duty hose up to +100 °C (with NBR lining and fabric insert)
  • 2 x Hose connector G1/4 male for hose iØ 9.5 mm - push-lock (steel, zinc-plated)
  • 1 x Mounting bracket CLASSIC, FUTURA, FLEX, NOVA 1-point G1/4 female (stainless steel)
  • 1 x Angle 45° G1/4 male x G1/4 female (brass)
  • 1 x Extension 45 mm G1/4 male x G1/4 female (brass)
INSTALLATION KIT STAR incl. 3 m hose
Art. No.: 101482
More info

Content:

  • 1 x Reducer G1/8 male x G1/4 female (brass)
  • 1 x Reducer M6 male x G1/4 female (brass)
  • 1 x Reducer M8x1 male x G1/4 female (brass)
  • 1 x Reducer M10x1 male x G1/4 female (brass)
  • 3 m Heavy Duty hose up to +100 °C (with NBR lining and fabric insert)
  • 2 x Hose connector G1/4 male for hose iØ 9.5 mm - push-lock
  •     (steel, zinc-plated)
  • 1 x Mounting bracket STAR Standard Duty 1-point G1/4 female
  •     (stainless steel)
  • 1 x Support flange STAR G1/4 male x G1/4 female (brass / plastic)
  • 1 x Angle 45° G1/4 male x G1/4 female (brass)
  • 1 x Extension 45 mm G1/4 male x G1/4 female (brass)

INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty beam clamp mount

INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty 1-point 30 mm beam clamp mount incl. 1 m hose
Art. No.: 110068
More info

Content:

  • 1 x 109685 Bracket 1-point G1/4 female
  • 1 x 109957 Beam clamp 30 mm
  • 1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female
  • 1 x 109849 Angle 90° R1/4 male x G1/4 female
  • 2 x 101554 Hose connector G1/4 male for hose iØ 9.5 mm
  • 1 m 101555 Heavy Duty hose
  • 1 x 109953 Reducer R1/8 male x G1/4 female
  • 1 x 109954 Reducer R1/4 male x G1/4 female
  • 1 x 104840 Reducer M10x1 male x G1/4 female
INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty 1-point 65 mm beam clamp mount incl. 1 m hose
Art. No.: 110069
More info

Content:

  • 1 x 109685 Bracket 1-point G1/4 female
  • 1 x 109958 Beam clamp 65 mm
  • 1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female
  • 1 x 109849 Angle 90° R1/4 male x G1/4 female
  • 2 x 101554 Hose connector G1/4 male for hose iØ 9.5 mm
  • 1 m 101555 Heavy Duty hose
  • 1 x 109953 Reducer R1/8 male x G1/4 female
  • 1 x 109954 Reducer R1/4 male x G1/4 female
  • 1 x 104840 Reducer M10x1 male x G1/4 female
INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty 2-point 30 mm beam clamp mount incl. 2 m hose
Art. No.: 110070
More info

Content:

  • 1 x 109686 Bracket 2-point G1/4 female
  • 2 x 109957 Beam clamp 30 mm
  • 2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female
  • 2 x 109849 Angle 90° R1/4 male x G1/4 female
  • 4 x 101554 Hose connector G1/4 male for hose iØ 9.5 mm
  • 2 m 101555 Heavy Duty hose
  • 0,25 m 109695 Hose spiral guard 25 mm
  • 2 x 109953 Reducer R1/8 male x G1/4 female
  • 2 x 109954 Reducer R1/4 male x G1/4 female
  • 2 x 104840 Reducer M10x1 male x G1/4 female
INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty 2-point 65 mm beam clamp mount incl. 2 m hose
Art. No.: 110071
More info

Content:

  • 1 x 109686 Bracket 2-point G1/4 female
  • 2 x 109958 Beam clamp 65 mm
  • 2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female
  • 2 x 109849 Angle 90° R1/4 male x G1/4 female
  • 4 x 101554 Hose connector G1/4 male for hose iØ 9.5 mm
  • 2 m 101555 Heavy Duty hose
  • 0,25 m 109695 Hose spiral guard 25 mm
  • 2 x 109953 Reducer R1/8 male x G1/4 female
  • 2 x 109954 Reducer R1/4 male x G1/4 female
  • 2 x 104840 Reducer M10x1 male x G1/4 female

INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty cage hanger

INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty 1-point cage hanger mount incl. 1 m hose
Art. No.: 110072
More info

Content:

  • 1 x 109689 Bracket cage hanger 1-point G1/4 female
  • 1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female
  • 1 x 109849 Angle 90° R1/4 male x G1/4 female
  • 2 x 101554 Hose connector G1/4 male for hose iØ 9.5 mm
  • 1 m 101555 Heavy Duty hose
  • 1 x 109953 Reducer R1/8 male x G1/4 female
  • 1 x 109954 Reducer R1/4 male x G1/4 female
  • 1 x 104840 Reducer M10x1 male x G1/4 female
INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Standard Duty 2-point cage hanger mount incl. 2 m hose
Art. No.: 110073
More info

Content:

  • 1 x 109690 Bracket cage hanger 2-point G1/4 female
  • 2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female
  • 2 x 109849 Angle 90° R1/4 male x G1/4 female
  • 4 x 101554 Hose connector G1/4 male for hose iØ 9.5 mm
  • 2 m 101555 Heavy Duty hose
  • 0,25 m 109695 Hose spiral guard 25 mm
  • 2 x 109953 Reducer R1/8 male x G1/4 female
  • 2 x 109954 Reducer R1/4 male x G1/4 female
  • 2 x 104840 Reducer M10x1 male x G1/4 female

perma STAR Kits

Learn more about the benefits and the right choice of our ACCESSORY KITS and INSTALLATION KITS STAR.

Download FlyerInstallation Guide

ACCESSORY KITS and INSTALLATION KITS STAR Standard Duty

ACCESSORY KITS and INSTALLATION KITS STAR Standard Duty have been especially designed for operation under normal ambient conditions. The kits contain all necessary parts, including a reducer M10x1 and G1/8 per lubrication point.
Unlike the ACCESSORY KITS, the INSTALLATION KITS do already contain the hose.

INSTALLATION KIT STAR Standard Duty 1-point 65 mm beam clamp mount incl. 3 m hose
Art. No.: 116961

Beam clamp mount

Drawing
INSTALLATION KIT STAR Standard Duty 2-point 65 mm beam clamp mount incl. 5 m hose
Art. No.: 116963

Beam clamp mount

Drawing
ACCESSORY KIT STAR Standard Duty 1-point 65 mm beam clamp mount without hose
Art. No.: 116951

Beam clamp mount

Drawing
ACCESSORY KIT STAR Standard Duty 2-point 65 mm beam clamp mount without hose
Art. No.: 116953

Beam clamp mount

Drawing
INSTALLATION KIT STAR Standard Duty 1-point cage hanger mount incl. 3 m hose
Art. No.: 116962

Cage hanger mount

Drawing
INSTALLATION KIT STAR Standard Duty 2-point cage hanger mount incl. 5 m hose
Art. No.: 116964

Cage hanger mount

Drawing
ACCESSORY KIT STAR Standard Duty 1-point cage hanger mount without hose
Art. No.: 116952

Cage hanger mount

Drawing
ACCESSORY KIT STAR Standard Duty 2-point cage hanger mount without hose
Art. No.: 116954

Cage hanger mount

Drawing

ACCESSORY KITS and INSTALLATION KITS STAR Heavy Duty

ACCESSORY KITS and INSTALLATION KITS STAR Heavy Duty have been specifically designed for use in operational areas with harsh ambient conditions. The kits contain all necessary parts, including a protection cap STAR Heavy Duty, a purge connection with manual valve and a reducer M10x1 and G1/8 per lubrication point.
Unlike the ACCESSORY KITS, the INSTALLATION KITS do already contain the hose.

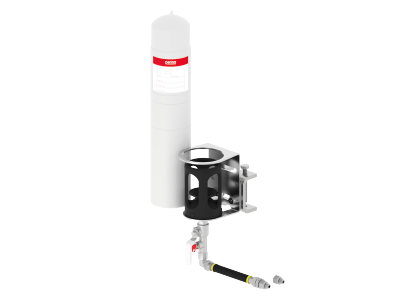

INSTALLATION KIT STAR Heavy Duty 1-point 65 mm beam clamp mount incl. 3 m hose
Art. No.: 116965

Beam clamp mount

Drawing
INSTALLATION KIT STAR Heavy Duty 2-point 65 mm beam clamp mount incl. 5 m hose
Art. No.: 116967

Beam clamp mount

Drawing
ACCESSORY KIT STAR Heavy Duty 1-point 65 mm beam clamp mount without hose
Art. No.: 116955

Beam clamp mount

Drawing
ACCESSORY KIT STAR Heavy Duty 2-point 65 mm beam clamp mount without hose
Art. No.: 116957

Beam clamp mount

Drawing

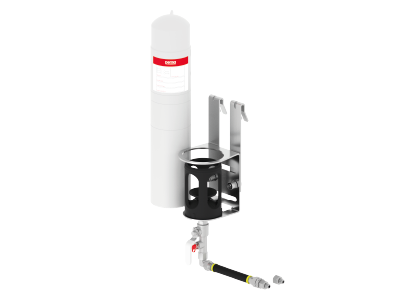

INSTALLATION KIT STAR Heavy Duty 1-point cage hanger mount incl. 3 m hose
Art. No.: 116966

Cage hanger mount

Drawing
INSTALLATION KIT STAR Heavy Duty 2-point cage hanger mount incl. 5 m hose
Art. No.: 116968

Cage hanger mount

Drawing

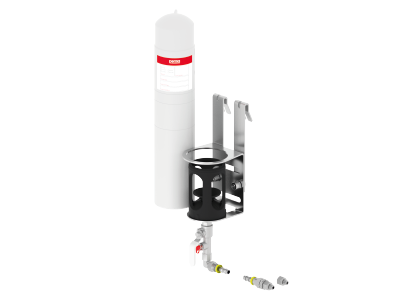

ACCESSORY KIT STAR Heavy Duty 1-point cage hanger mount without hose
Art. No.: 116956

Cage hanger mount

Drawing
ACCESSORY KIT STAR Heavy Duty 2-point cage hanger mount without hose
Art. No.: 116958

Cage hanger mount

Drawing

ACCESSORY KIT ULTRA

ACCESSORY KIT ULTRA Standard Duty 1-point 65 mm beam clamp mount without hose
Art. No.: 116335
More info

Content:

  • 1 x Mounting bracket ULTRA
  • 2 x Beam clamp 65 mm
  • 2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
  • 2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
  • 1 x Reducer G1/8 male x G1/4 female
  • 1 x Reducer M10x1 male x G1/4 female
  • 1 x Angle 90° R1/4 male x 9/16 JIC male
ACCESSORY KIT ULTRA Standard Duty 1-point cage hanger mount without hose
Art. No.: 116336
More info

Content:

  • 1 x Mounting bracket ULTRA
  • 2 x Cage hanger arm
  • 2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
  • 2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
  • 1 x Reducer G1/8 male x G1/4 female
  • 1 x Reducer M10x1 male x G1/4 female
  • 1 x Angle 90° R1/4 male x 9/16 JIC male
ACCESSORY KIT ULTRA Heavy Duty 1-point 65 mm beam clamp mount without hose
Art. No.: 116337
More info

Content:

  • 1 x Mounting bracket ULTRA
  • 1 x Protection cap ULTRA Heavy Duty
  • 2 x Beam clamp 65 mm
  • 1 x T-Adapter 2 x G1/4 female x R1/4 male
  • 1 x Hydraulic-type lubricating nipple R1/4
  • 2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
  • 2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
  • 1 x Reducer G1/8 male x G1/4 female
  • 1 x Reducer M10x1 male x G1/4 female
  • 1 x Angle 90° R1/4 male x 9/16 JIC male
ACCESSORY KIT ULTRA Heavy Duty 1-point cage hanger mount without hose
Art. No.: 116338
More info

Content:

  • 1 x Mounting bracket ULTRA
  • 1 x Protection cap ULTRA Heavy Duty
  • 2 x Cage hanger arm
  • 1 x T-Adapter 2 x G1/4 female x R1/4 male
  • 1 x Hydraulic-type lubricating nipple R1/4
  • 2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
  • 2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
  • 1 x Reducer G1/8 male x G1/4 female
  • 1 x Reducer M10x1 male x G1/4 female
  • 1 x Angle 90° R1/4 male x 9/16 JIC male

INSTALLATION KIT ULTRA

INSTALLATION KIT ULTRA Standard Duty 1-point 65 mm beam clamp mount incl. 5 m hose
Art. No.: 116339
More info

Content:

  • 1 x Mounting bracket ULTRA
  • 2 x Beam clamp 65 mm
  • 5 m Extreme Heavy Duty hose up to +100 °C oØ 11.8 mm x iØ 6.4 mm
  • 2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
  • 2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
  • 1 x Reducer G1/8 male x G1/4 female
  • 1 x Reducer M10x1 male x G1/4 female
  • 1 x Angle 90° R1/4 male x 9/16 JIC male
INSTALLATION KIT ULTRA Standard Duty 1-point cage hanger mount incl. 5 m hose
Art. No.: 116340
More info

Content:

  • 1 x Mounting bracket ULTRA
  • 2 x Cage hanger arm
  • 5 m Extreme Heavy Duty hose up to +100 °C oØ 11.8 mm x iØ 6.4 mm
  • 2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
  • 2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
  • 1 x Reducer G1/8 male x G1/4 female
  • 1 x Reducer M10x1 male x G1/4 female
  • 1 x Angle 90° R1/4 male x 9/16 JIC male
INSTALLATION KIT ULTRA Heavy Duty 1-point 65 mm beam clamp mount incl. 5 m hose
Art. No.: 116341
More info

Content:

  • 1 x Mounting bracket ULTRA
  • 1 x Protection cap ULTRA Heavy Duty
  • 5 m Extreme Heavy Duty hose up to +100 °C oØ 11.8 mm x iØ 6.4 mm
  • 2 x Beam clamp 65 mm
  • 1 x T-Adapter 2 x G1/4 female x R1/4 male
  • 1 x Hydraulic-type lubricating nipple R1/4
  • 2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
  • 2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
  • 1 x Reducer G1/8 male x G1/4 female
  • 1 x Reducer M10x1 male x G1/4 female
  • 1 x Angle 90° R1/4 male x 9/16 JIC male
INSTALLATION KIT ULTRA Heavy Duty 1-point cage hanger mount incl. 5 m hose
Art. No.: 116342
More info

Content:

  • 1 x Mounting bracket ULTRA
  • 1 x Protection cap ULTRA Heavy Duty
  • 5 m Extreme Heavy Duty hose up to +100 °C oØ 11.8 mm x iØ 6.4 mm
  • 2 x Cage hanger arm
  • 1 x T-Adapter 2 x G1/4 female x R1/4 male
  • 1 x Hydraulic-type lubricating nipple R1/4
  • 2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm
  • 2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection
  • 1 x Reducer G1/8 male x G1/4 female
  • 1 x Reducer M10x1 male x G1/4 female
  • 1 x Angle 90° R1/4 male x 9/16 JIC male

ACCESSORY KITS and INSTALLATION KITS Chains

Please note that oil brushes are not included in the kits.

You can find them here.

INSTALLATION KIT STAR Chains
Art. No.: 117983
More info

Content:

  • 1 x Support flange STAR G1/4 male x G1/4 female (brass / plastic)
  • 1 x Mounting bracket STAR 1-point G1/4 female
  • 1 x Beam clamp 30 mm
  • 3 m Tube up to +80 °C oØ 8 mm x iØ 6 mm
  • 1 x Oil retaining valve G1/4 male x G1/4 female up to +60 °C
  • 1 x Bracket (stainless steel)
  • 1 x Mounting angle 50 x 70 x 70 x 2.5 mm
  • 1 x Insert for bracket G1/4 male x G1/4 female (brass)
  • 1 x Extension 45 mm G1/4 male x G1/4 female (brass)
  • 1 x SET small parts for installation kit chains
  • 2 x Tube connector G1/4 male for tube oØ 8 mm straight
  • 2 x Tube connector G1/4 male for tube oØ 8 mm 90° - rotary type
ACCESSORY KIT STAR Chains
Art. No.: 117982
More info

Content:

  • 1 x Support flange STAR G1/4 male x G1/4 female (brass / plastic)
  • 1 x Mounting bracket STAR 1-point G1/4 female
  • 1 x Beam clamp 30 mm
  • 1 x Oil retaining valve G1/4 male x G1/4 female up to +60 °C
  • 1 x Bracket (stainless steel)
  • 1 x Mounting angle 50 x 70 x 70 x 2.5 mm
  • 1 x Insert for bracket G1/4 male x G1/4 female (brass)
  • 1 x Extension 45 mm G1/4 male x G1/4 female (brass)
  • 1 x SET small parts for installation kit chains
  • 2 x Tube connector G1/4 male for tube oØ 8 mm straight
  • 2 x Tube connector G1/4 male for tube oØ 8 mm 90° - rotary type
INSTALLATION KIT CLASSIC, FUTURA, FLEX, NOVA Chains
Art. No.: 117984
More info

Content:

  • 1 x Support flange FLEX G1/4 male x G1/4 female (brass / plastic)
  • 1 x Mounting bracket CLASSIC, FUTURA, FLEX, NOVA 1-point G1/4 female
  • 1 x Beam clamp 30 mm
  • 3 m Tube up to +80 °C oØ 8 mm x iØ 6 mm
  • 1 x Oil retaining valve G1/4 male x G1/4 female up to +60 °C
  • 1 x Bracket (stainless steel)
  • 1 x Mounting angle 50 x 70 x 70 x 2.5 mm
  • 1 x Insert for bracket G1/4 male x G1/4 female (brass)
  • 1 x Extension 45 mm G1/4 male x G1/4 female (brass)
  • 1 x SET small parts for installation kit chains
  • 2 x Tube connector G1/4 male for tube oØ 8 mm straight
  • 2 x Tube connector G1/4 male for tube oØ 8 mm 90° - rotary type
ACCESSORY KIT CLASSIC, FUTURA, FLEX, NOVA Chains
Art. No.: 117981
More info

Content:

  • 1 x Support flange FLEX G1/4 male x G1/4 female (brass / plastic)
  • 1 x Mounting bracket CLASSIC, FUTURA, FLEX, NOVA 1-point G1/4 female
  • 1 x Beam clamp 30 mm
  • 1 x Oil retaining valve G1/4 male x G1/4 female up to +60 °C
  • 1 x Bracket (stainless steel)
  • 1 x Mounting angle 50 x 70 x 70 x 2.5 mm
  • 1 x Insert for bracket G1/4 male x G1/4 female (brass)
  • 1 x Extension 45 mm G1/4 male x G1/4 female (brass)
  • 1 x SET small parts for installation kit chains
  • 2 x Tube connector G1/4 male for tube oØ 8 mm straight
  • 2 x Tube connector G1/4 male for tube oØ 8 mm 90° - rotary type
SET small parts for installation kit chains
Art. No.: 117977
