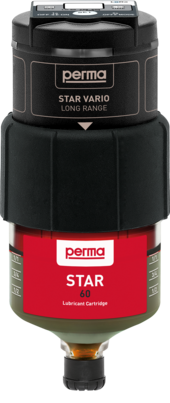

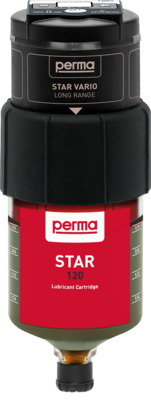

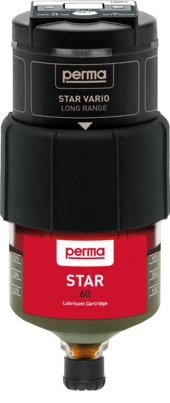

perma STAR VARIO LONG RANGE is used for single-point lubrication of roller and sliding bearings, sliding guides, open gears, gear racks, spindles, shaft seals and chains. Thanks to precise lubricant metering, perma STAR VARIO LONG RANGE is ideal for lubrication of electric motors with specified lubricant quantities.
Conveyors
Pumps
Blowers / Fans
Electric motors
Chains
Shaft seals
Spindels
Open gears
Sliding bearings
Roller bearings

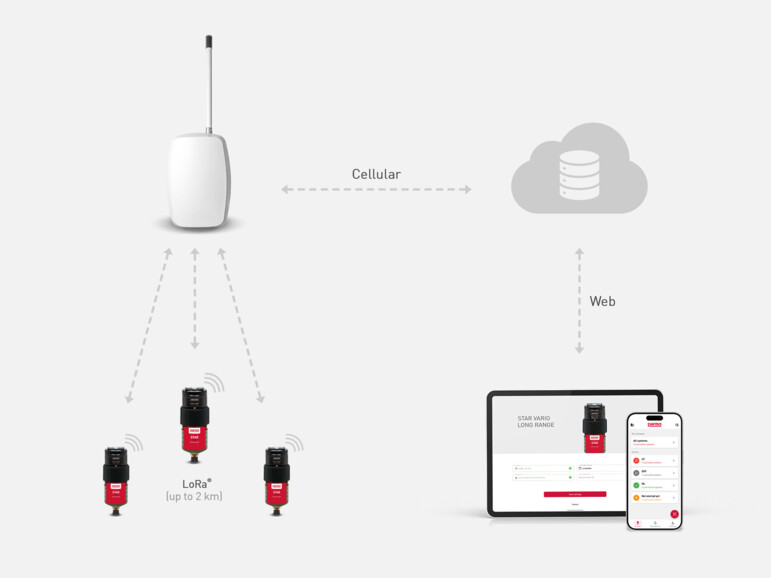

LONG RANGE function
- Simple operation via perma CONNECT
- Configuration, control and maintenance from a distance of

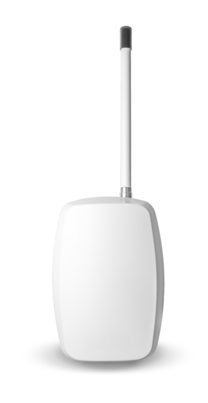

up to 2 km - Management of up to 2,000 lubrication points via Gateway LONG RANGE

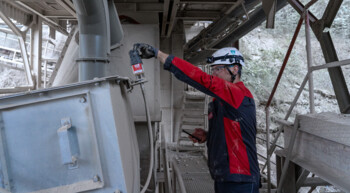

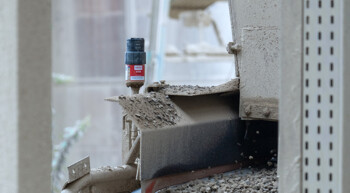

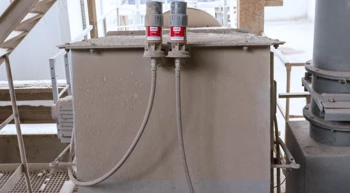

Pressure build-up of 7.5 bar allows remote mounting up to 5 m
- Mounting outside of dangerous areas
- Higher equipment availability
- Universal use

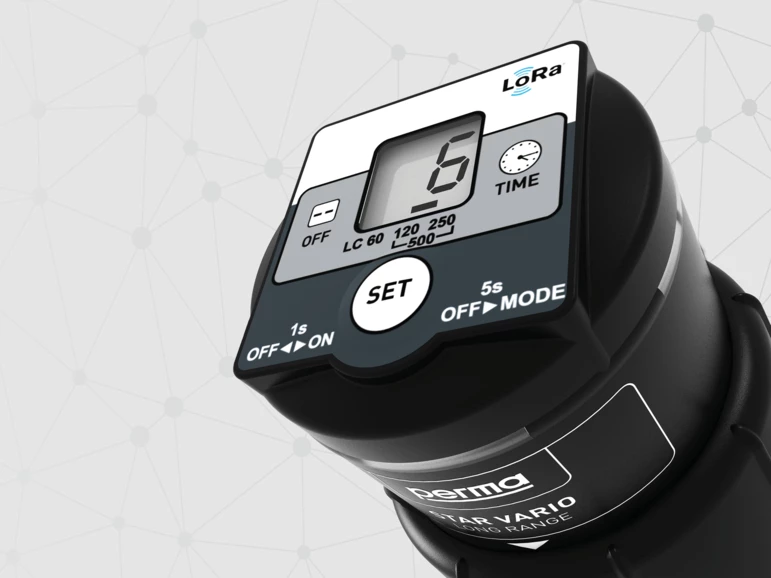

LCD Display with push button displays discharge period, LC size & operating status
- Simple and self-explanatory operation
- Settings can be changed at any time
SERVICE PORTFOLIO
The perma Services team is made up of highly qualified professionals who are on hand to help you find the right lubrication solution.
| Drive | Electromechanical |
|---|---|
| Power supply | Battery pack STAR VARIO 4.5 V |
| Housing | Transparent plastic |
| Discharge period | 1, 2, 3, ..., 12 months | 1, 2, 3, ..., 52 weeks STAR LC 60: + 15, 18, 21, 24 months STAR LC 500: max. 6 months | max. 26 months |
| Lubricant volume | 60 cm³, 120 cm³, 250 cm³, 500 cm³ |
| Operating temperature* | -40 °C** to +60 °C |
| Pressure build-up | 7,5 bar |
| Protection class | IP 67 | IP 65 |
| Lubricants | Greases up to NLGI 2 | Oils |
| Max. tube lengths | 5.00 m |
| CE | ✓️ |
*To achieve functionality below -20° C / -4° F, Battery pack STAR VARIO low temperature (Lithium) must be used.
**Only use with suitable low temperature lubricants
