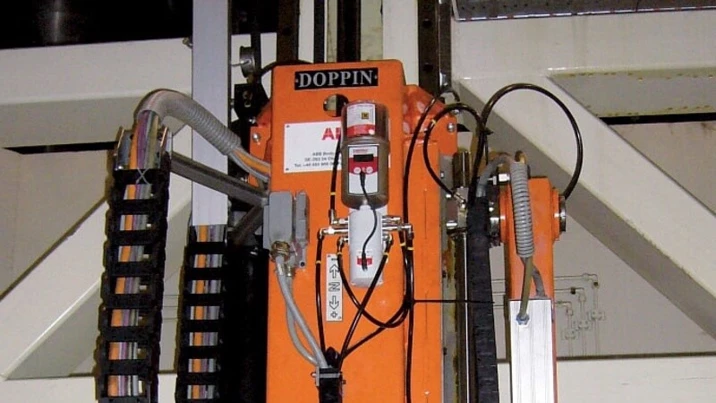

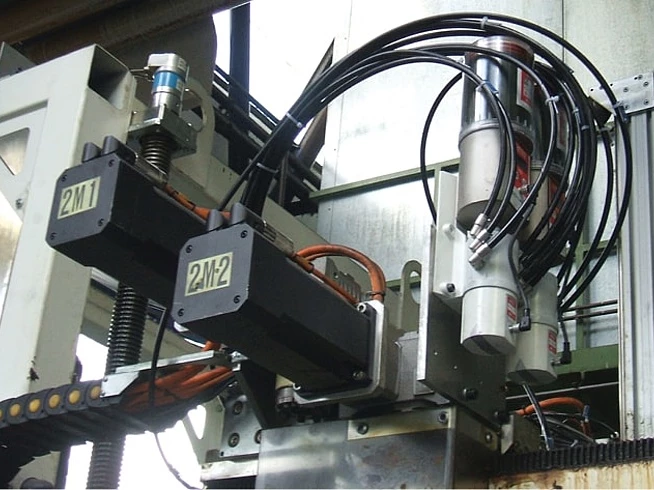

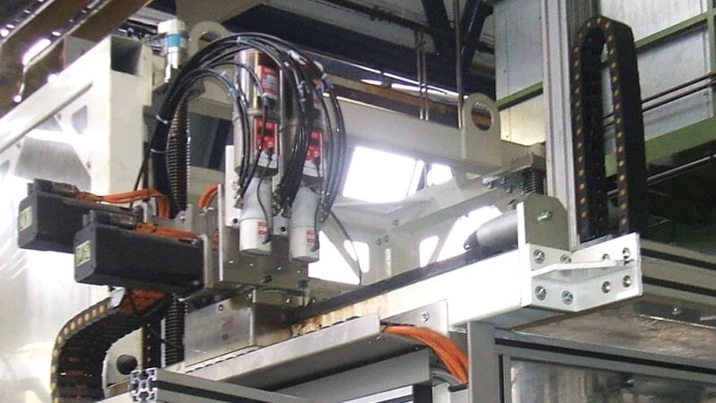

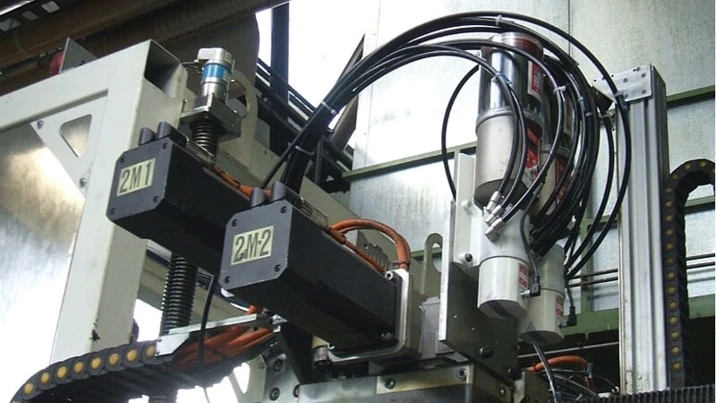

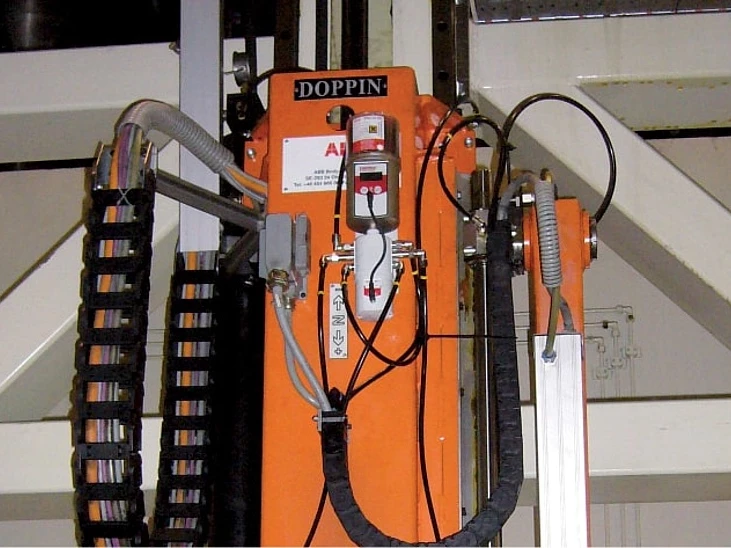

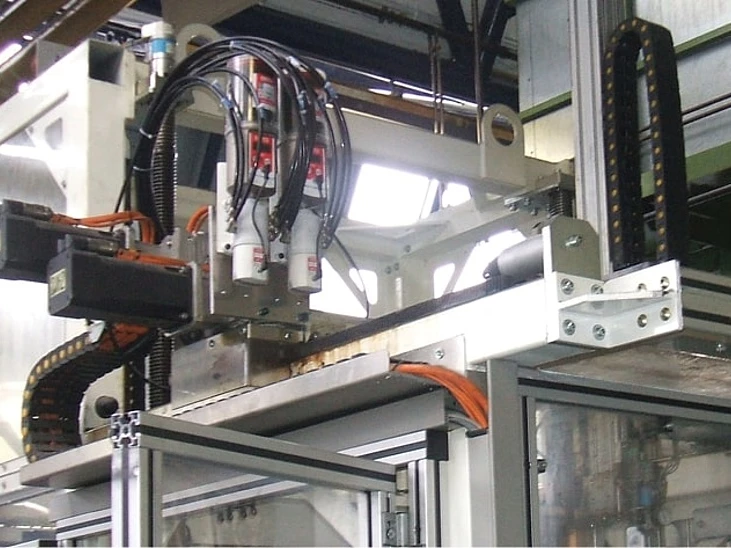

Main applications for the multi-point lubrication system perma PRO LINE are linear guides. Application fields range from various linear guide and drive units in all kinds of industries - from automotive to paper. Other applications are roller and sliding bearings, open gears and spindles.
Flexible setting options for every outlet
- Lubricant quantity individually configurable for each outlet
- Individual setting of pause times
- Lubricant discharge is optimally adapted
Setting via push button with display and LED
- Simple operation of lubrication system
- Lubrication system function and error immediately visible
- Quick check of discharge time simplifies planning of PRO LC exchange
Additional discharge
- Additional lubricant discharges can be triggered for all outlets
- Peak loads can be compensated
- Lubrication point can be purged for fresh lubricant supply
| Drive | Electromechanical |
|---|---|
| Power supply | Battery PRO B |
| Housing | Metal / Transparent plastic |
| Discharge period | Pause time in days (24 h) / Discharges for each outlet |
| Lubricant volume | 250 cm³, 500 cm³ |
| Operating temperature | -20 °C to +60 °C |
| Pressure build-up | 25 bar |
| Number of outlets | 1 - 6 |
| Lubricants | Grease up to NLGI 2 |
| Max. tube lengths | 5.00 m |
| CE | ✓️ |
| UL | ✓️ |
